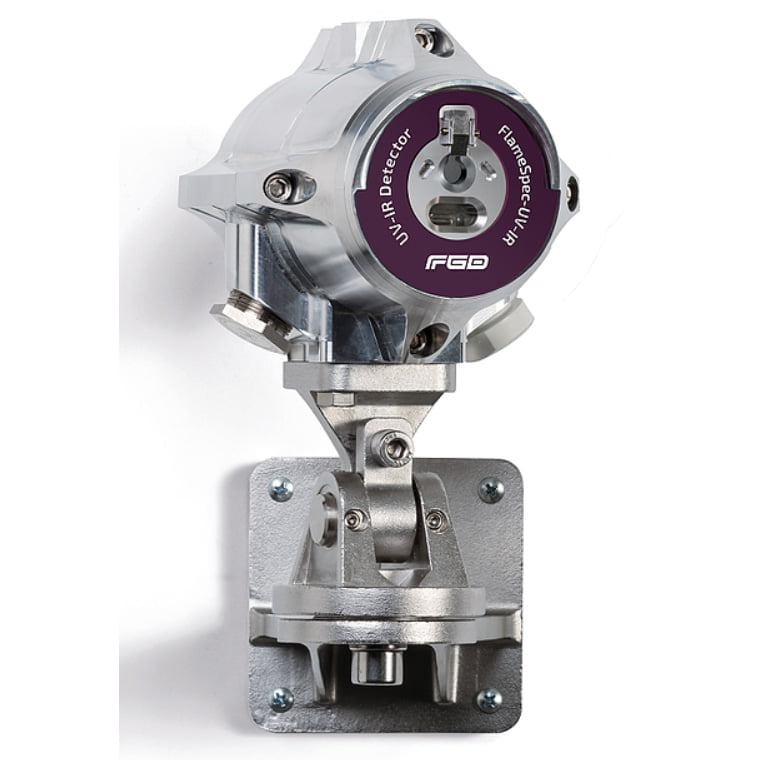

UV/IR Flame Detector – FlameSpec-UV-IR

Key Benefits

  • Hydrogen and Hydrocarbons flame detection.
  • Ultra-fast detection mode detection within 5 milliseconds for fireballs or explosions
  • High sensitivity – up to 100ft (30m) for a 1ft2 (0.1m2) n-heptane pan fire
  • High immunity to false alarm
  • Data/Event logger – alarms, faults and other relevant events are logged to non-volatile memory.
  • Ethernet communication – in addition to the standard methods, such as 4-20mA and Modbus.
  • Built-in-Test (BIT) – Automatic and manual internal self-test of window cleanliness and the overall operation of the detector (for both IR and UV channels).
  • Window heater to avoid condensation and icing.
  • Configurable detection mode – allows configuration of UV-IR, UV or IR detection mode.
Description

The FlameSpec-UV-IR flame detector provides ultra-fast response, high performance and reliable detection of a large variety of fires including hydrocarbon fires (visible and nonvisible), as well as Hydrogen fires.​

The detector addresses slow growing fires as well as fast eruptions of fire using improved UV IR
technology. The detector operates in all weather and light conditions.​

FlameSpec-UV-IR-F model  – Same As FlameSpec-UV-IR but does not see hydroxyl and hydrogen fires and IR sensor that operates at a wavelength of 4.0-5-0 μm
