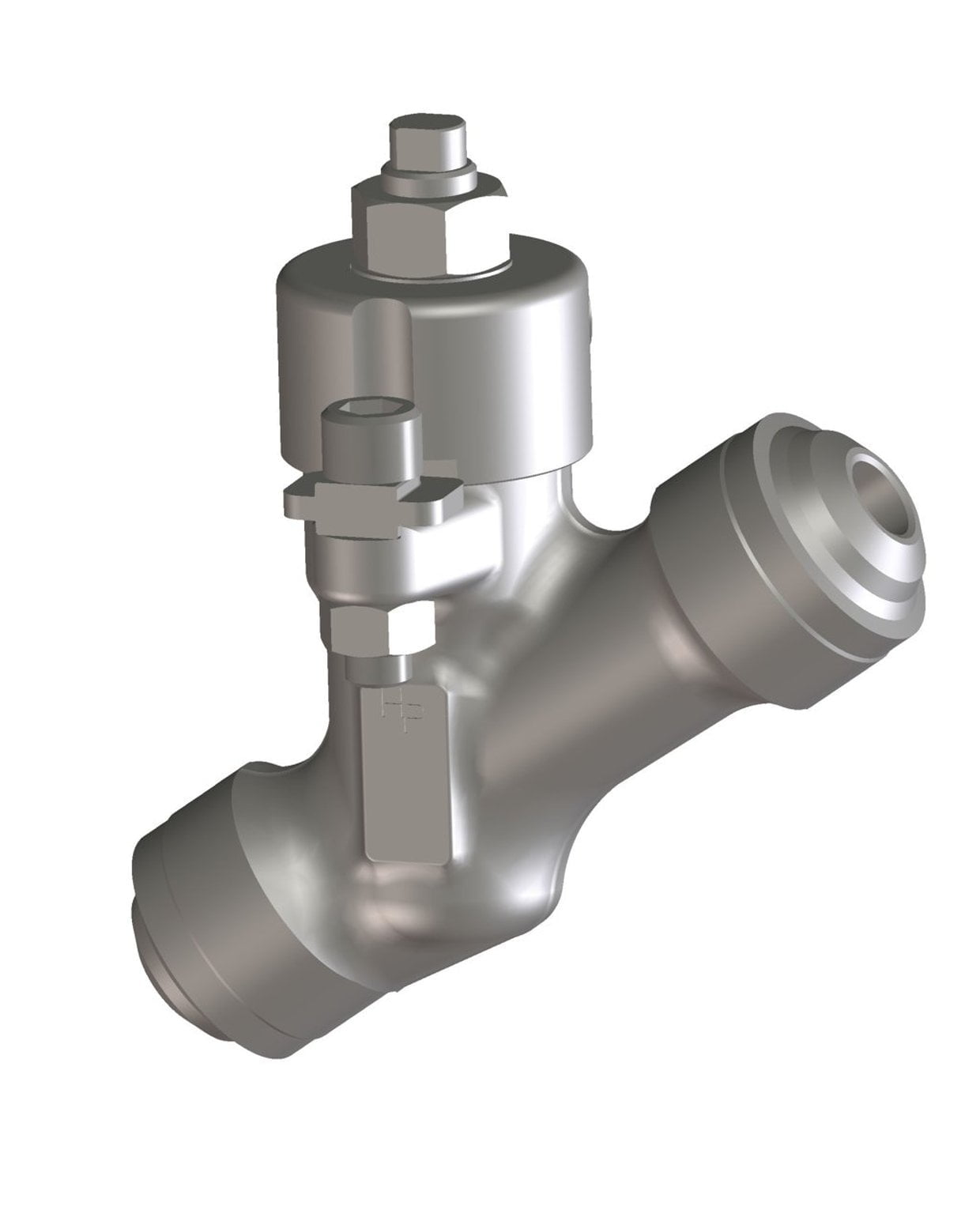

05.Y Forged Steel Y-Pattern Ball Check Valves, Pressure Seal Bonnet

Fig no. 05.Y
Pressure rating 1500 / 2700 lbs
PN 160 – PN 400
Size range 3/8 – 2
Body materials SA105N, SA350-LF2, SA182-F22, SA182-F91, SA182-F92, SA182-F316(L), 1.0460, 13CrMo4.5, 11CrMo9.10, 1.4903, 1.4901, 1.4404
End connections SW, BW, NPT, Flanged
Features Pressure Seal Bonnet, Bayonet Body/Cap-Connection
Specification Download Spec
