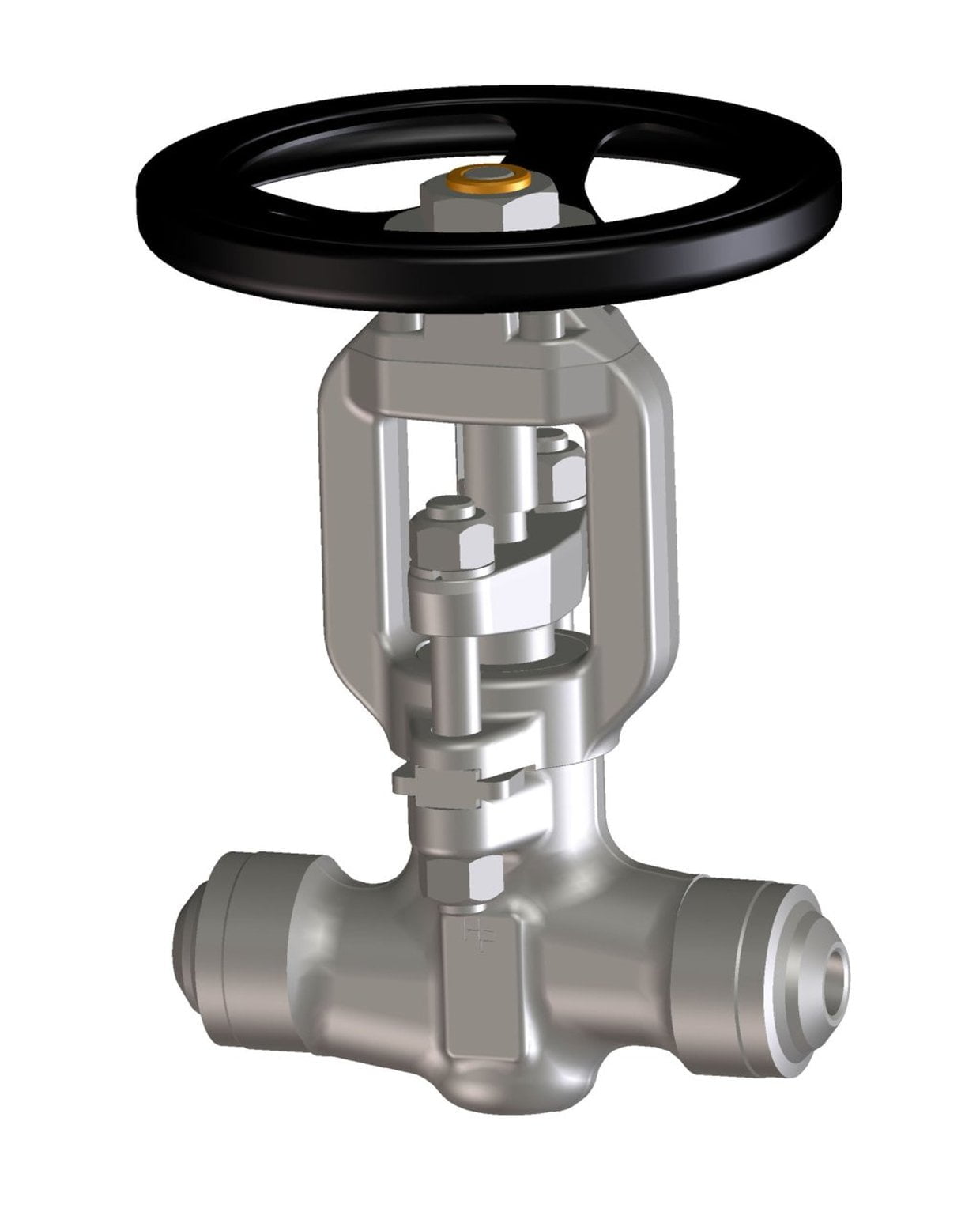

02.T.L.F Forged Steel Throttle Type Globe Valves, Bonnetless

Fig no. 02.T.L.F
Pressure rating 3500 / 4500 lbs
PN 500 – PN 760
Size range 1/2 – 1 1/2
Body materials SA105N, SA182-F12, SA182-F22, SA182-F91, SA182-F92, SA182-F316(L), 1.0460, 13CrMo4.5, 11CrMo9.10, 1.4903, 1.4901, 1.4404, 1.5415, 1.6368
End connections SW, BW
Features Integral Bonnet (Bonnetless), Floating Backseat, Bayonet Body/Yoke-Connection
Specification Download Spec
